S/W Auto Dip and Bake Machine

S/W AUTOMATIC DIP AND BAKE MACHINE
MODEL SW2000
One ton Trolley Crane, 108 Cu Ft. Oven, 500 GA. Varnish Vat

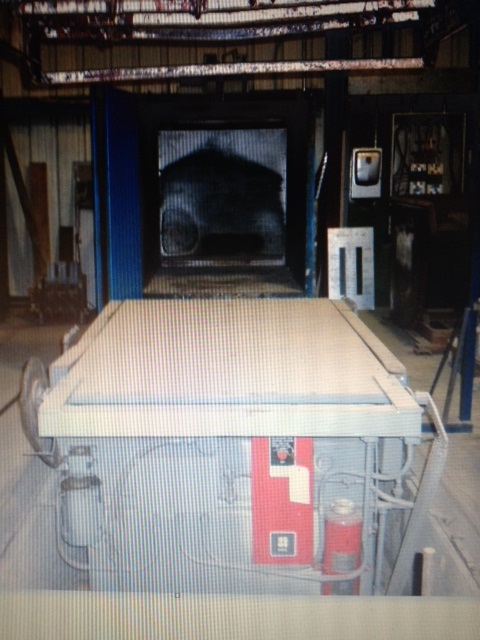

This dip and bake machine is an S/W Enterprises, Inc. model SW2000. Vat capacity is 500 gallons; dimensions being 68”wide x 71”long x 45” deep. It is equipped with a fire protection system. The oven has 480V heaters and is 47 wide” x 72” deep x 54” high. The crane does not specify its capacity, but we have dipped and baked a 1000 HP 3600 RPM U.S. Electric motor. I think that is in the neighborhood of 1500-2000 lbs. Its dimensions are 72” high, 72” wide, capable of hanging multiple small motors. Overall length of the entire unit, crane rails, vat and oven is 26 ft. The unit’s width is 10ft. Call Tod Rawlins at 404-307-8663 with any questions..
